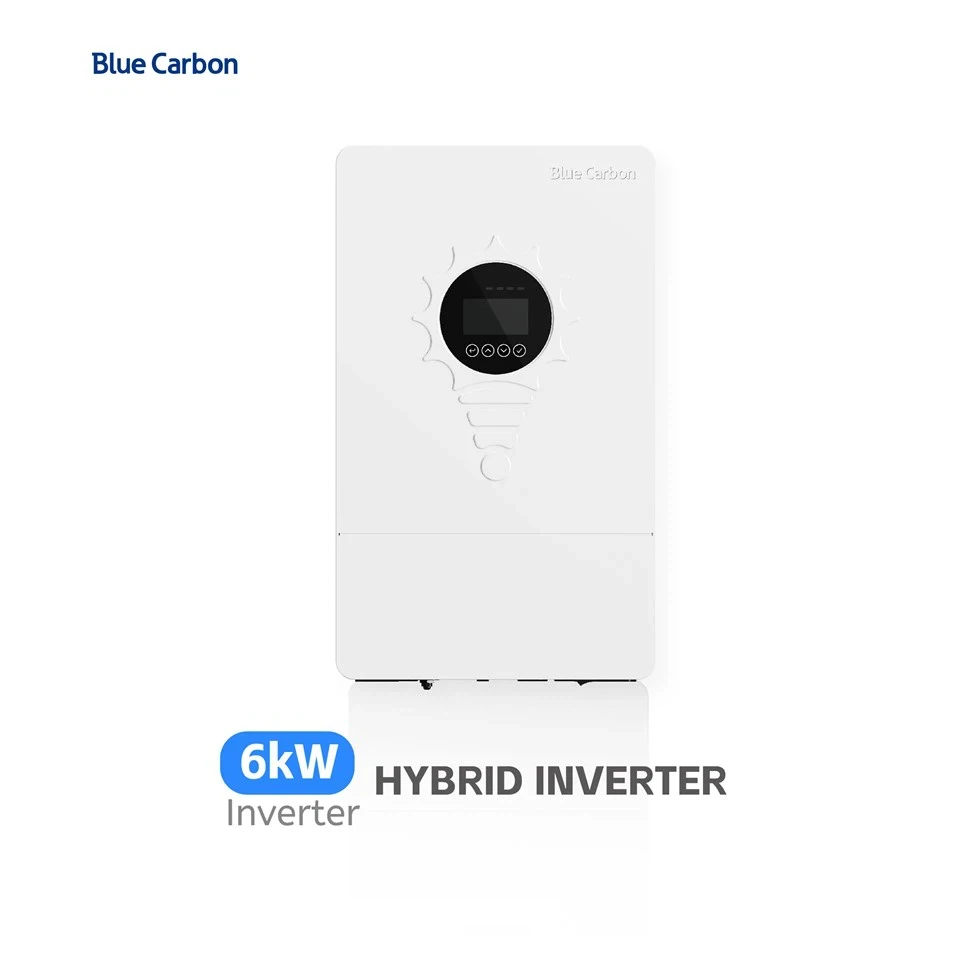

BLUE CARBON 6KVA-48V SOLAR HYBRID INVERTER– All-in-one 6 kW hybrid inverter with integrated MPPT charger — flexible, compact, and reliable for backup and self-consumption.

All-in-one 6 kW hybrid inverter with integrated MPPT charger — flexible, compact, and reliable for backup and self-consumption.
Max Power 6kW, power factor 1.
MPPT ranges 120V~450V, 500Voc.
High frequency inverter with small size and light weight.
Pure sine wave AC output.

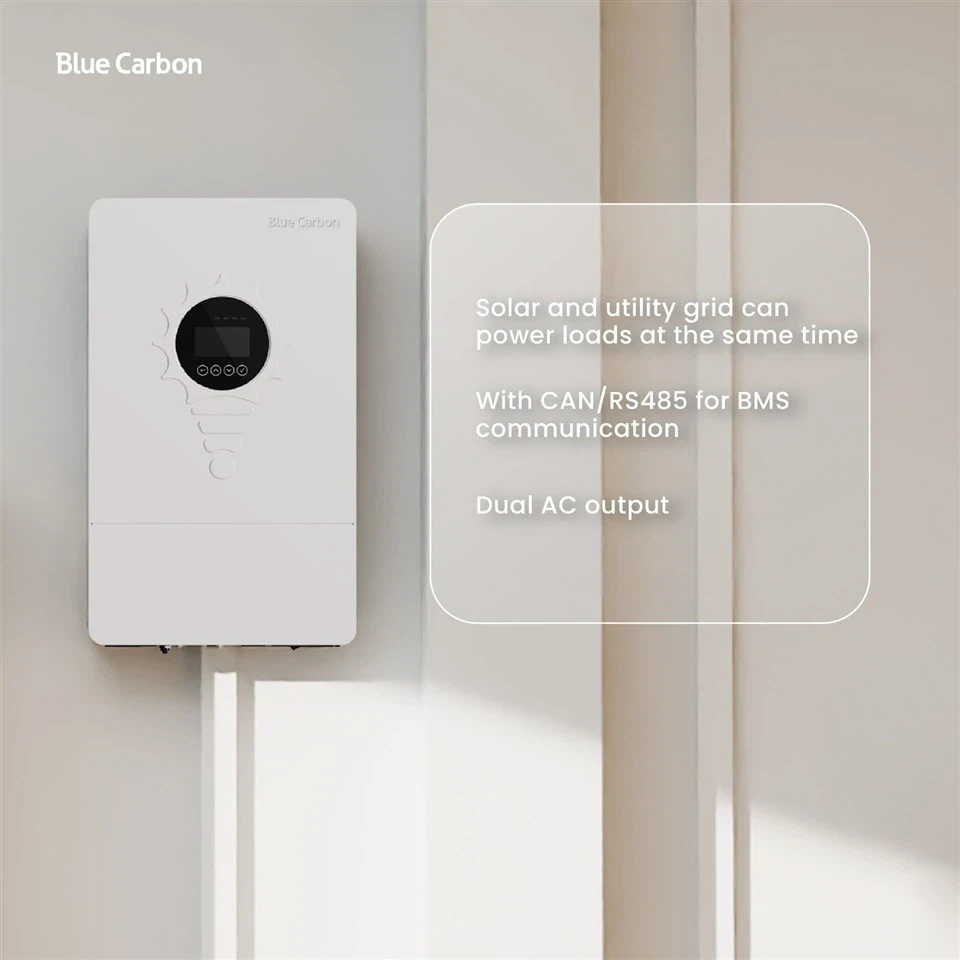

Solar and utility grid can power loads at the same time.
With CAN/RS485 for BMS communication.
With the ability to work without battery.
WIFI/ GPRS remote monitoring (optional)
Dual AC outputs; grid-feed and feed-in capability.

Hybrid Solar Inverters

(BCT-FXC-6KW-H-P)

The BCT-FXC-6KW hybrid inverter combines flexibility and reliability in one compact package. With integrated MPPT charging, battery-optional operation, dual AC outputs, and cloud monitoring options, it’s engineered for homeowners and small businesses seeking efficient self-consumption, dependable backup, and easy scalability.



Main Features

• All-in-One Design

Integrates an MPPT solar charge controller and a high-frequency pure-sine-wave inverter in a single unit-ideal for off-grid backup and self-consumption installations.

• Reliable Quality & 5-Year Warranty

Compatible with both lithium and lead-acid batteries, supports lithium battery activation and BMS comms, and offers optional Wi-Fi/GPRS remote monitoring. Backed by a 5-year warranty and full after-sales support.

• High Performance & Efficiency

Wide MPPT operating range of 120–450 V and a maximum PV open-circuit voltage (Voc) of 500 V, ensuring optimal PV harvest and efficient energy conversion.

• Battery-Optional Operation

Can operate without a battery for flexible deployments while delivering up to 6 kW of continuous power with a unity power factor (PF = 1).

• Compact & Lightweight

Small form factor and low weight simplify installation and save site space-suitable for rooftops, utility rooms, and small commercial installations.

• Dual AC Outputs & Power Flexibility

Dual AC outputs allow simultaneous supply from solar and grid sources, enabling reliable load management and the ability to segregate critical and non-critical loads.





FAQ

Q: Can the inverter work without a battery?
A: Yes – the FXC-6KW supports operation without a battery and can also manage battery charging when one is installed.

Hybrid Solar Inverter-BCT-FXC-6…

Q: Which batteries are supported?
A: Lithium (LiFePO₄ recommended) and lead-acid batteries are supported; the inverter provides BMS communication via CAN/RS to safely manage lithium packs.

Hybrid Solar Inverter-BCT-FXC-6…

Q: Is remote monitoring available?
A: Yes – Wi-Fi / GPRS monitoring is optional for cloud monitoring and mobile app control.
